Wide-belt sander Maxx 6W 1500
Machine is based on sucessfull serie Maxx 4 which has proven itself to customers worldwide. Wide belt sander Maxx 6W is with its construction and possibilities designed for demanding sanding of metals.
Fixed table height allows it to use the sander in technological production lines. Achievable high quality of the sanded surfaces and the degree of automatization of sanding processes put this machine in the upper middle class.
Sander Maxx 6W is produced in to versions for dry and wet sanding.
Machine benefits
We produce the machine since 2015
We delivered the machine to 11 of the world's countries
We produced the machine for 5 of satisfied customers
sanding belt length is 2200 mm

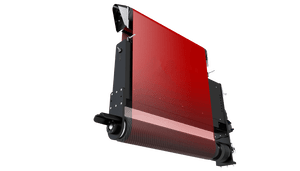

possible to equipped with combination of maximum 3 units ( drum brush B, planetary disc brush T, grinding roller R )
working rollers diameter is 160 mm
workpiece thickness 0,5 - 160 mm
Use
Wide belt sanders Maxx 6W series are designed for sanding (machining) workpieces from metal.
Interesting product
- Powerful, comfortably equipped wide belt sander with variety of optional equipment and different working units.
- It is equipped with fixed table suitable for production line,
- two versions for dry and wet sanding.
Specifications
| Sanding belt width | 1 530 mm |
| Maximum workpiece height | 160 mm |
| Min. workpiece height | 0,5 mm |
| Motor power | 15 kW |
3D Model
Standard equipment
- rubbered roller D=120 mm, 60 Sh
- sanding belt speed 18 m/s
- sanding belt dimensions 1900x430/830/1120/1330 mm
- motorized table height adjustment
- min./max. workpiece height 0,5/160 mm
- automatic star/delta switch
- feed belt motor frequency inverter- speed 2-10 m/min
- ammeter for motor of sanding unit
- optical sensor control of abrasive belt oscillation
- electronic measuring of table position with digital display
- rubber pressure rollers with covered quides
- main motor pneumatic disc brake
- pressure switch 3,5-4,0 bar
- sanding belt
- CE certification
Optional accessories
- motor 11 kW (15 HP) for width 400 mm
- motor 15 kW (20 HP) for width 800, 1100, 1300 mm
- two speed motor for table height adjustment
- main motor frequency inverter- speed 10-35 m/s
- NC machine control
- colour Touchscreen 10,1“
- elestronic adjustment of contact roller position by stepper motor
- rubbered roller D=120 mm, 30 Sh, 45 Sh, 90 Sh
- rubbered roller D=160 mm, 30 Sh, 45 Sh, 90 Sh
- timed air cleaning device for sanding belt-1 pc
- automatic feed belt tracking, sanding belt 2200 mm (machine height + 200 mm)
- table lift 220 mm, electronical limitation of maximum material removal
- extension table with rollers- front and rear 400 mm
- extension table with flat plate-front and rear 500 mm

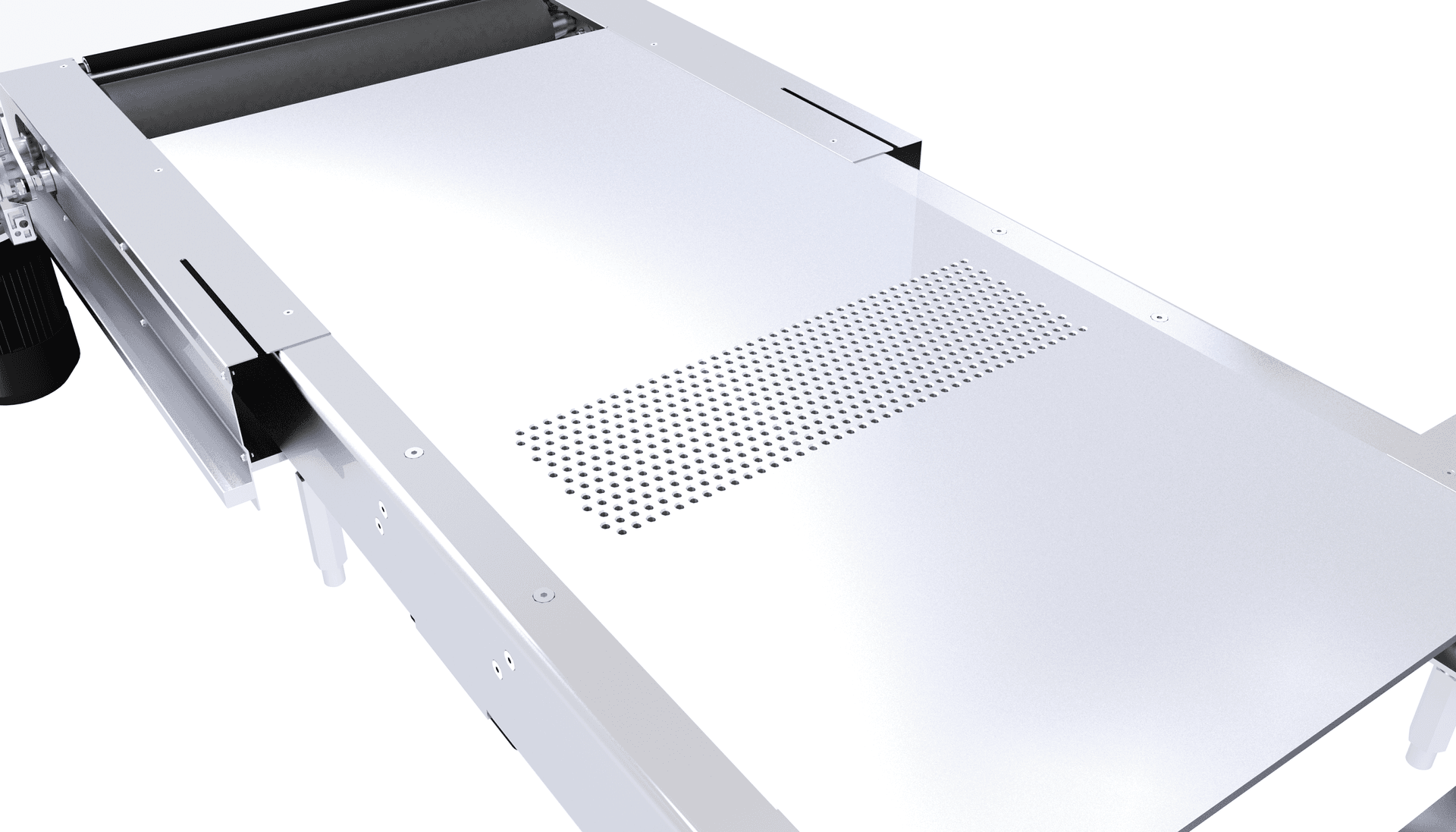

- vacuum table
- magnetic table width 150 mm, 300 mm
- vacuum pump for width 400 mm, 800 mm, 1100 mm, 1300 mm
- flat feeding belt

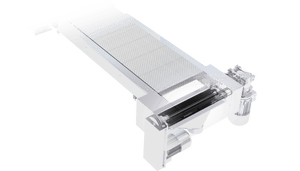

- module for feeding belt cleaning
